Generalities
Products

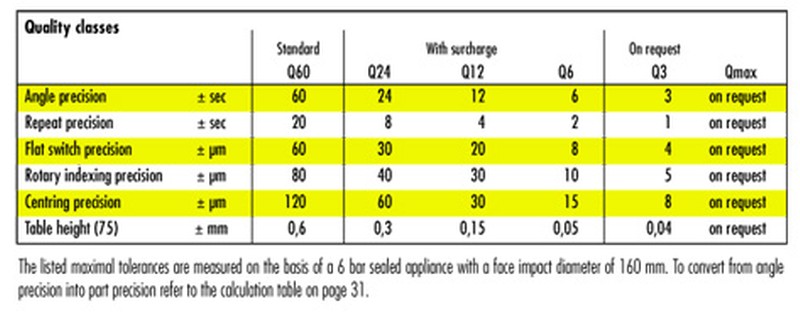

ServoPress rotary indexing tables qualities available:

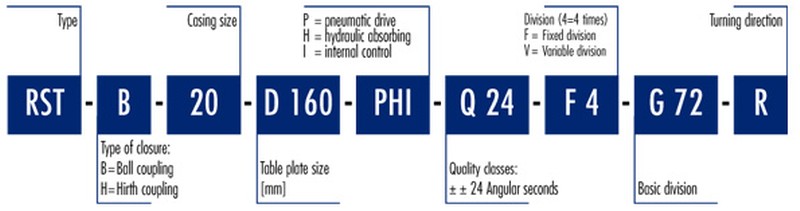

Rotary indexing tables - designs:
Production lines RST and the elevating MST precision rotary indexing tables
with ball or Hirth coupling and quality classes of ± 24 up to ± 5 angular seconds.
Cogwheel mechanism
Mini-RST RST - PPX = pneumatic - for small light loads
Compact appliances RST - PHI = pneumohydraulic - from ø 160 mm up to ø 630 mm with built-in pneumatic control
Electrical external RST - HEX = electrohydraulic from ø 160 mm up to ø 1250 mm
External RST - PEX = electropneumohydraulic from ø 160 mm up to ø 800 mm
Plate cam drive
Velocity MST - EMS = electromechanical with Hirth coupling for larger angular momentum with a shorter
switching time from ø 200 mm up to ø 800 mm
The non-elevating production line MRT precision rotary indexing tables
with cylinder guide drive
MRT - EMZ = electomechanical drive for rapid and non jerking, sinusoidal pulses from ø 160 mm up to ø 800 mm
with ball or Hirth coupling and quality classes of ± 24 up to ± 5 angular seconds.
Cogwheel mechanism
Mini-RST RST - PPX = pneumatic - for small light loads
Compact appliances RST - PHI = pneumohydraulic - from ø 160 mm up to ø 630 mm with built-in pneumatic control
Electrical external RST - HEX = electrohydraulic from ø 160 mm up to ø 1250 mm
External RST - PEX = electropneumohydraulic from ø 160 mm up to ø 800 mm
Plate cam drive
Velocity MST - EMS = electromechanical with Hirth coupling for larger angular momentum with a shorter
switching time from ø 200 mm up to ø 800 mm
The non-elevating production line MRT precision rotary indexing tables
with cylinder guide drive
MRT - EMZ = electomechanical drive for rapid and non jerking, sinusoidal pulses from ø 160 mm up to ø 800 mm
